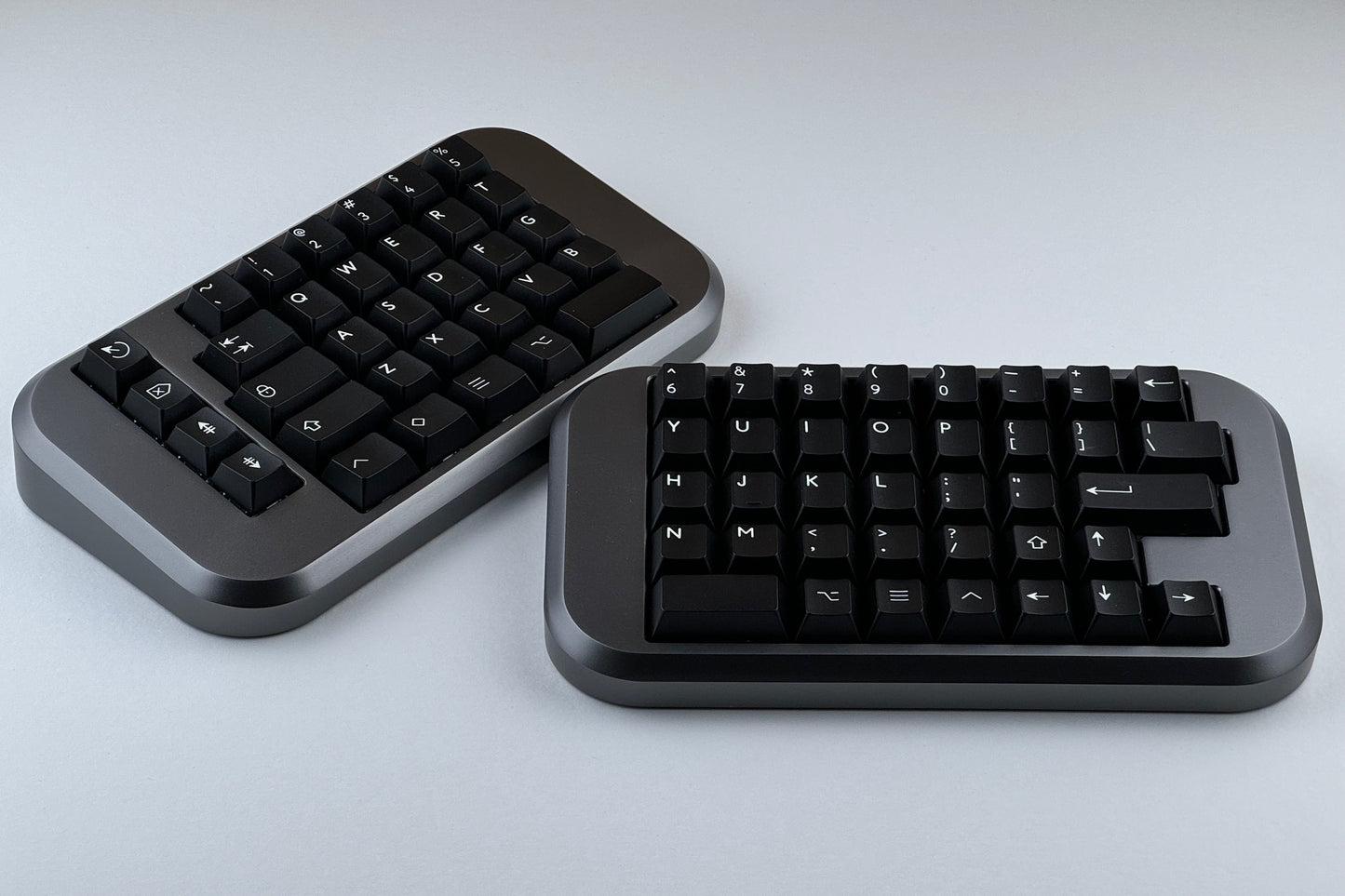

• Grey Hall effect split keyboard with black keycaps, ortholinear layout for gaming
  • Silver Hall effect split wired keyboard with black keycaps, ortholinear layout for gaming

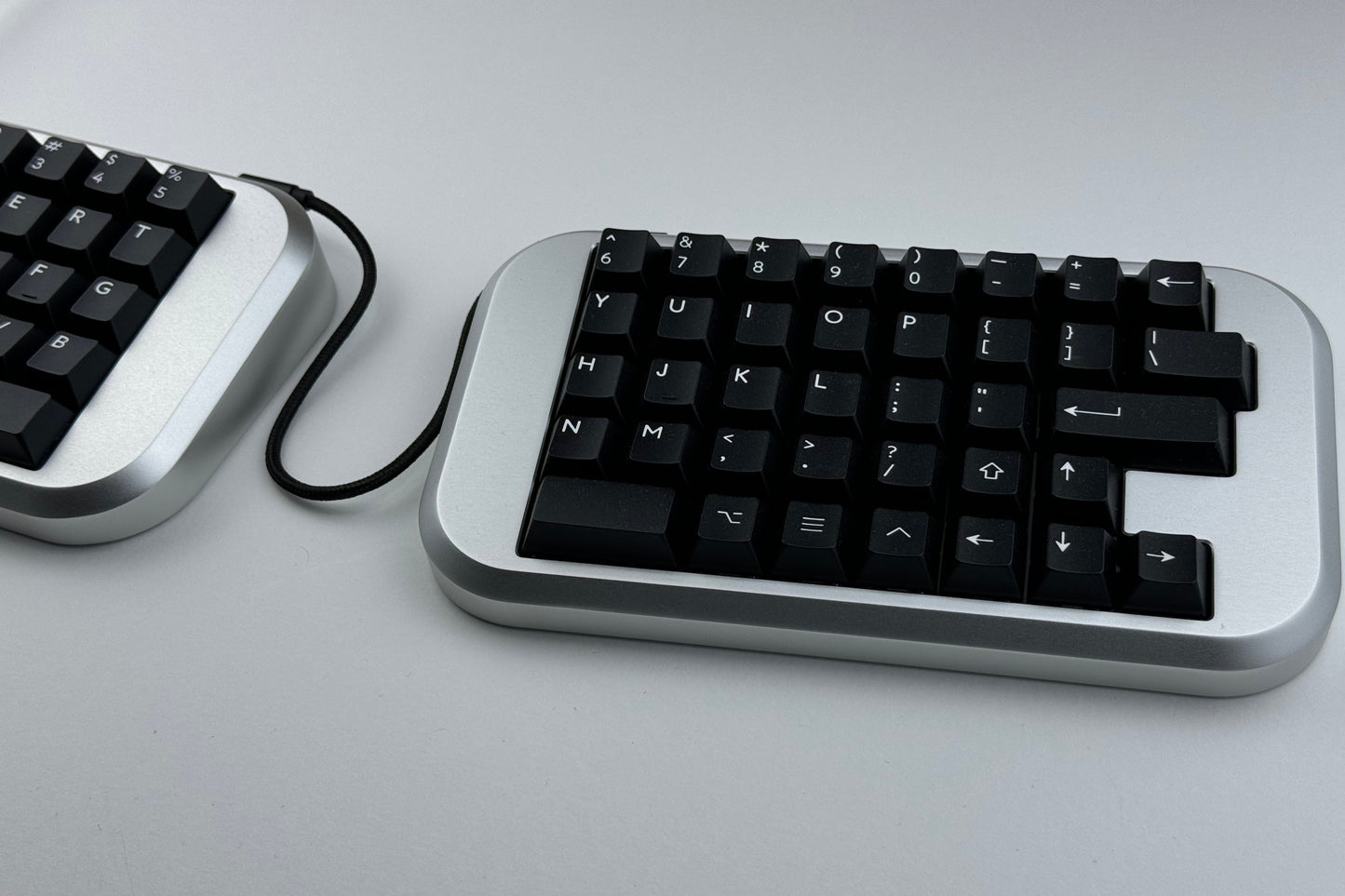

  • Closeup view of a silver Hall effect split wired keyboard with black keycaps, ortholinear layout for gaming
  • Back view of a closed silver Hall effect split keyboard, ortholinear layout for gaming

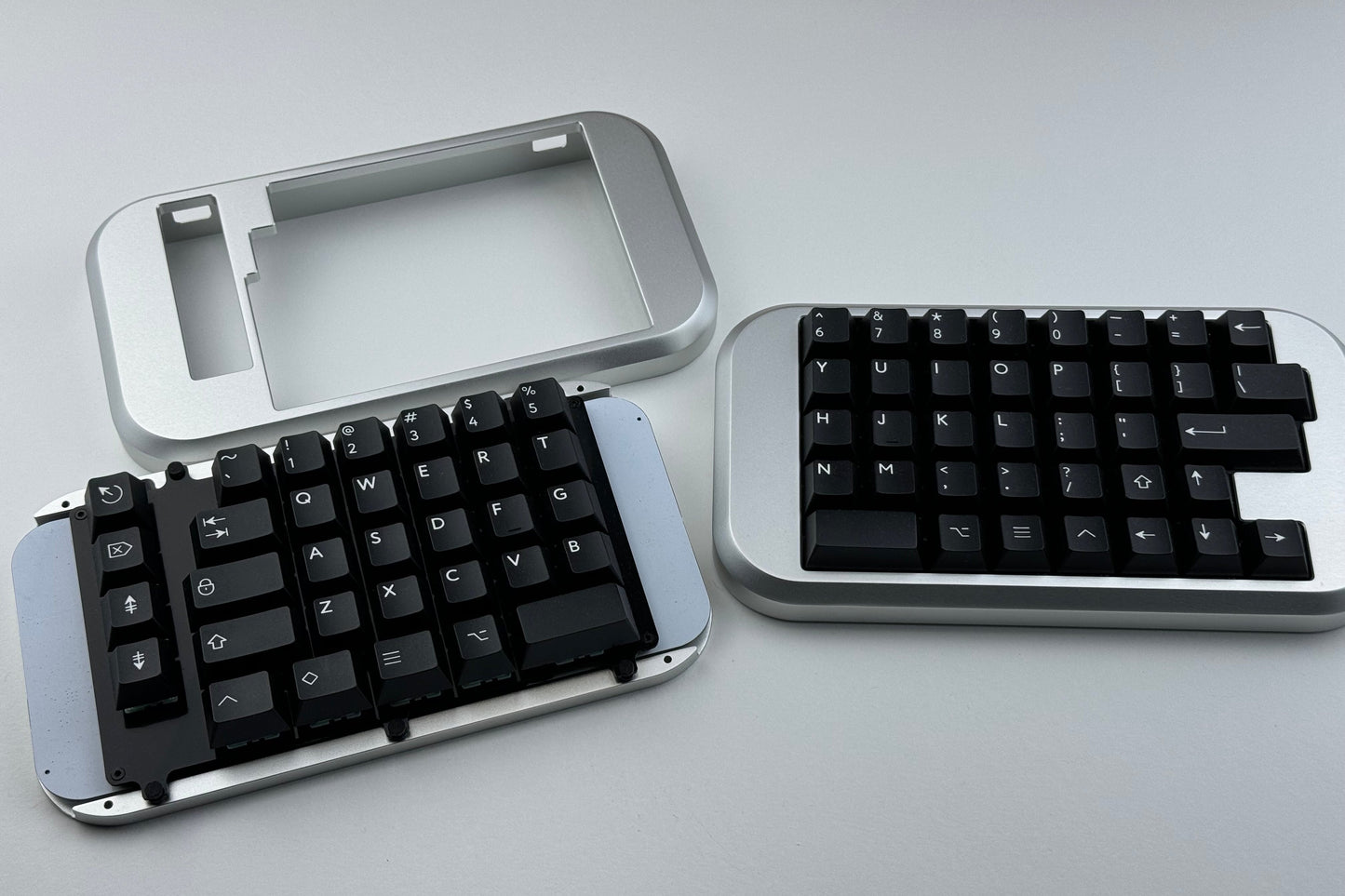

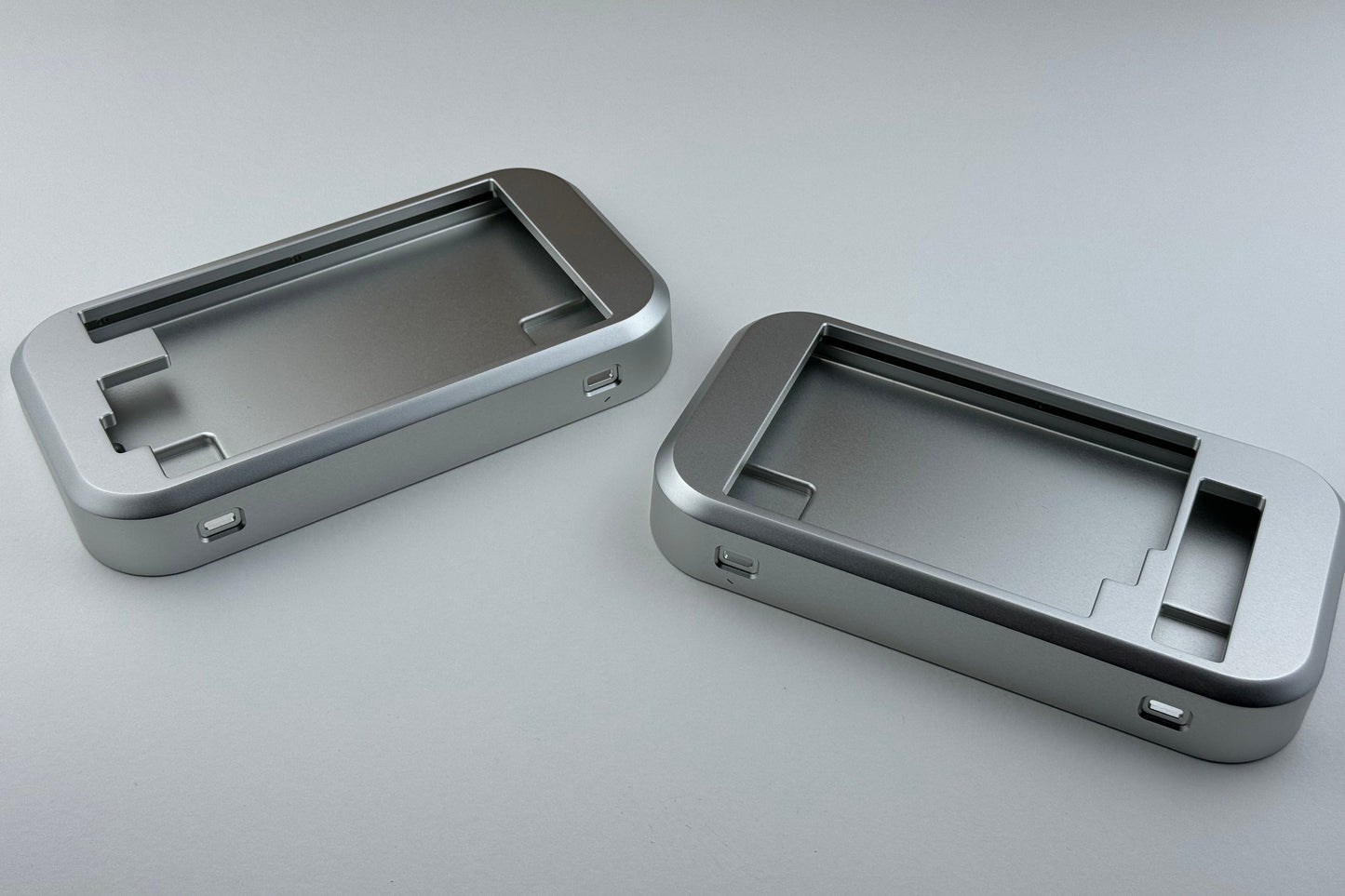

  • Top view of an opened silver Hall effect split keyboard, ortholinear layout for gaming
  • Top view of key components from a Hall effect split keyboard, ortholinear layout for gaming

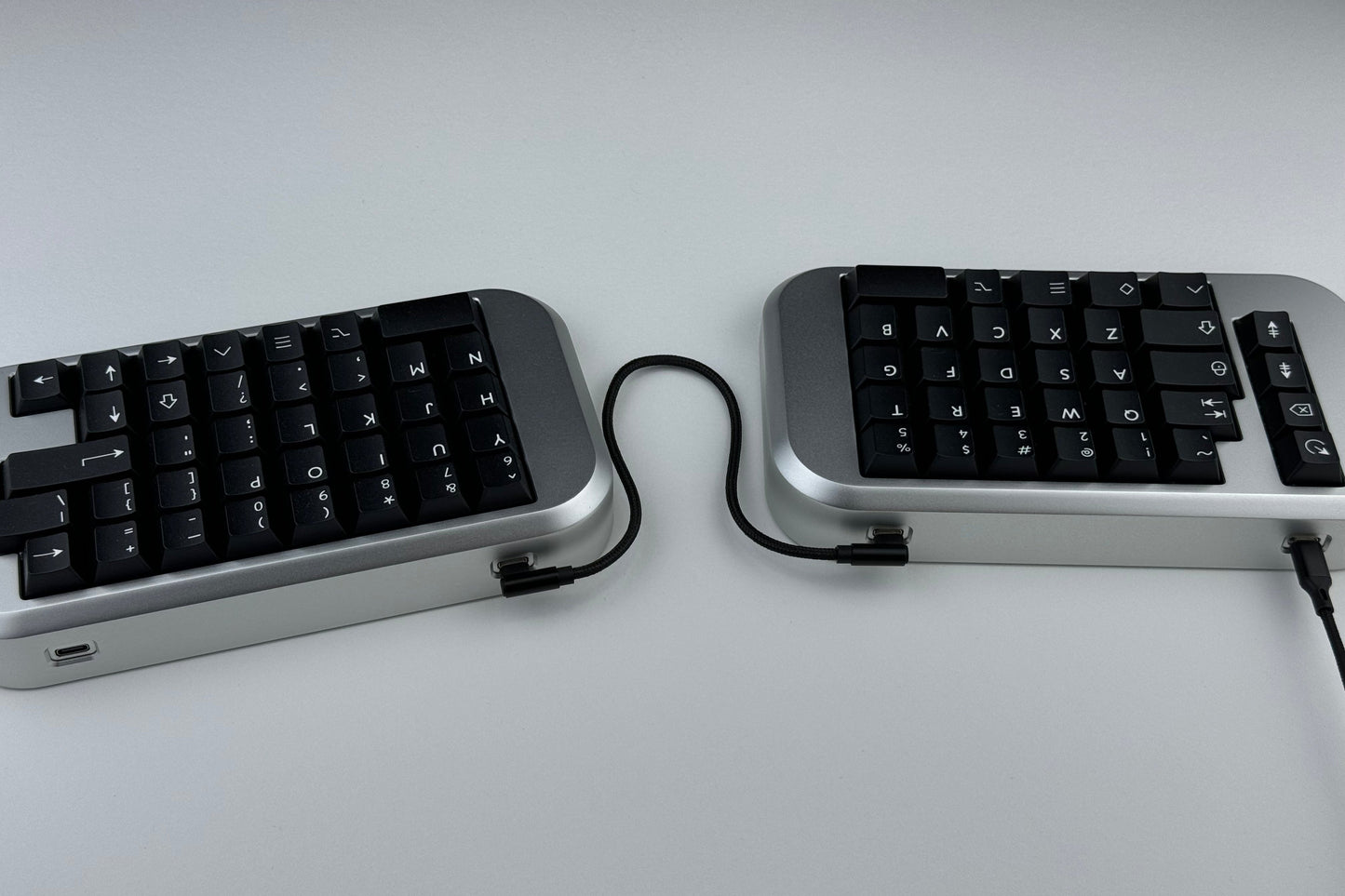

  • Back view of a silver Hall effect split wired keyboard with black keycaps, ortholinear layout for gaming
  • Closeup view of an opened silver Hall effect split keyboard with black keycaps, ortholinear layout for gaming

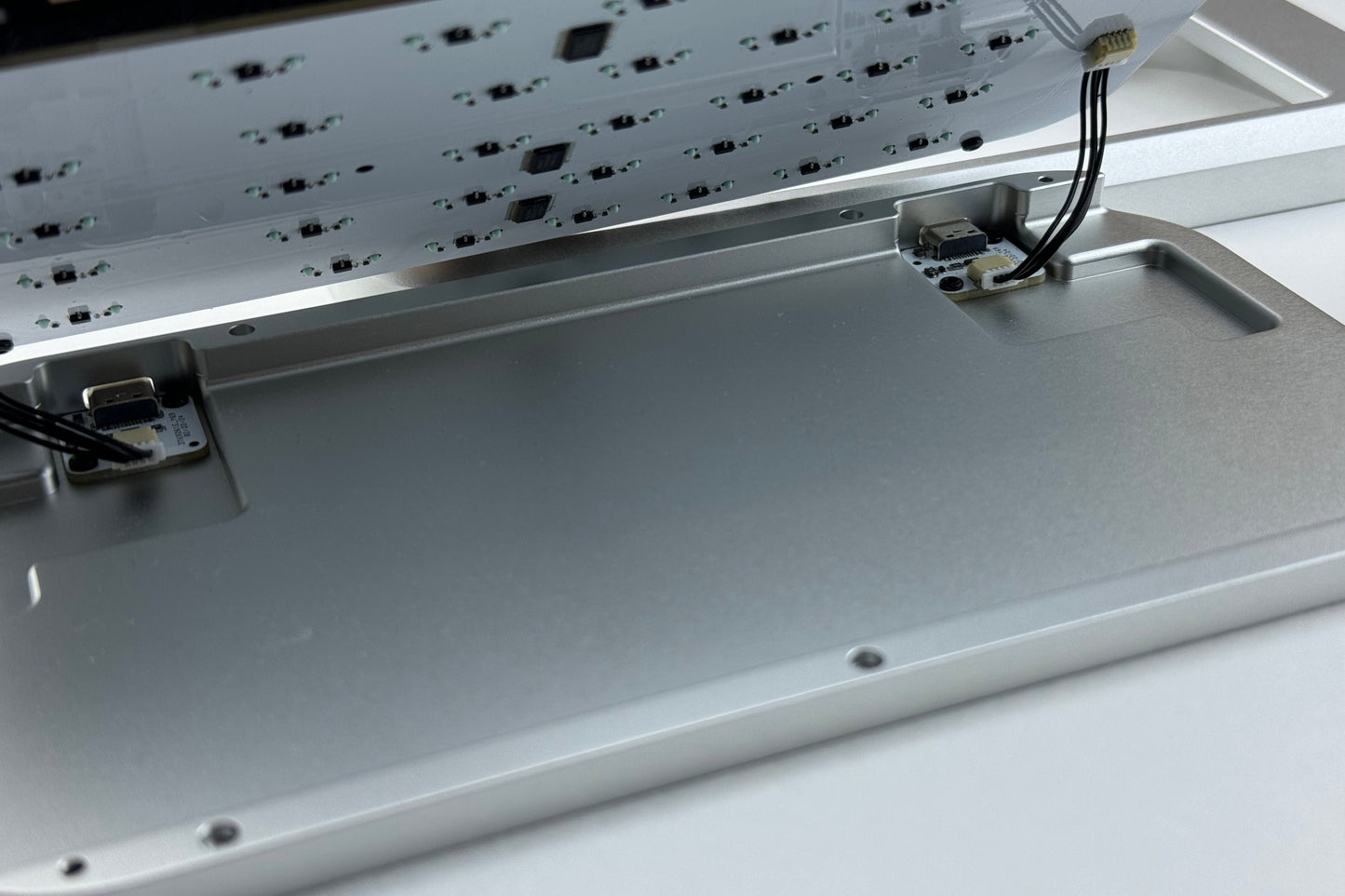

  • Hall effect split keyboard PCB, ortholinear layout for gaming
1 9

Sunder E70 HE

Sunder E70 HE

$345.00 SGD
$345.00 SGD
Sale Sold out
Shipping calculated at checkout.
Color

Click here for assembly guide.

View full details

Sunder E70 HE

Hall effect split keyboard

Vial with Hall Effect Features

Vial HE

Hall Effect Details

Firmware: QMK Vial (with HE features)
GUI: Vial (with HE features)

Additional Firmware Features
- Adjustable Actuation
- Rapid Trigger
- Input Priority (SOCD/Snap Tap/etc)
- Layer-specific HE configs (global + optional layer-specific config)

Scan rate: 2.6 kHz
Polling rate: 1 kHz

Compatible switches:
- Gateron Magnetic Jade (3.5mm, any variant except low profile)

Keyboard Details

Typing angle: 7°
Front height: 17mm (18.5mm with rubber feet)

Keyboard material: Aluminium 6061
Plate material: POM
Gasket material: silicone rubber

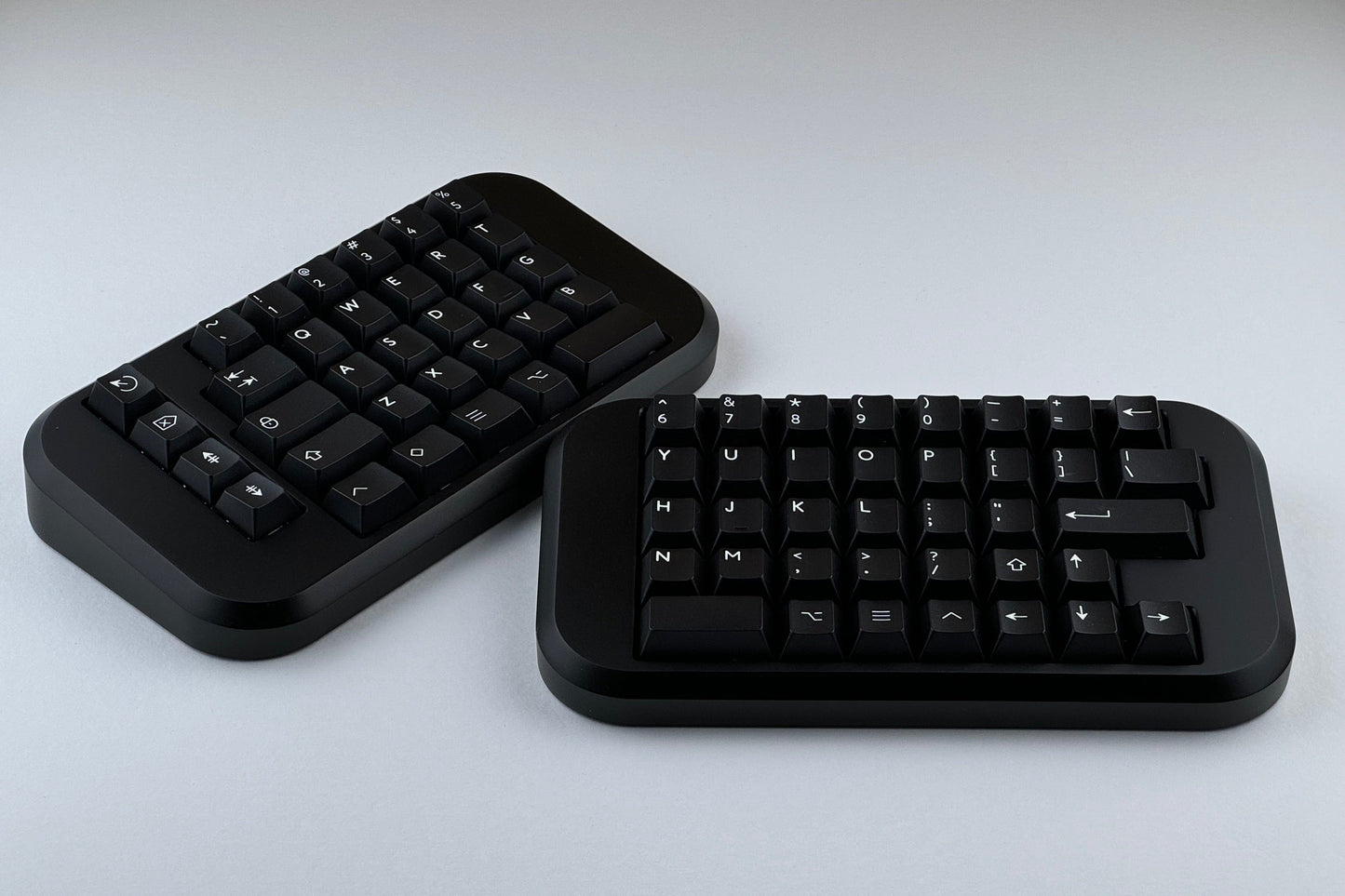

Colours: Anodised black, grey, silver

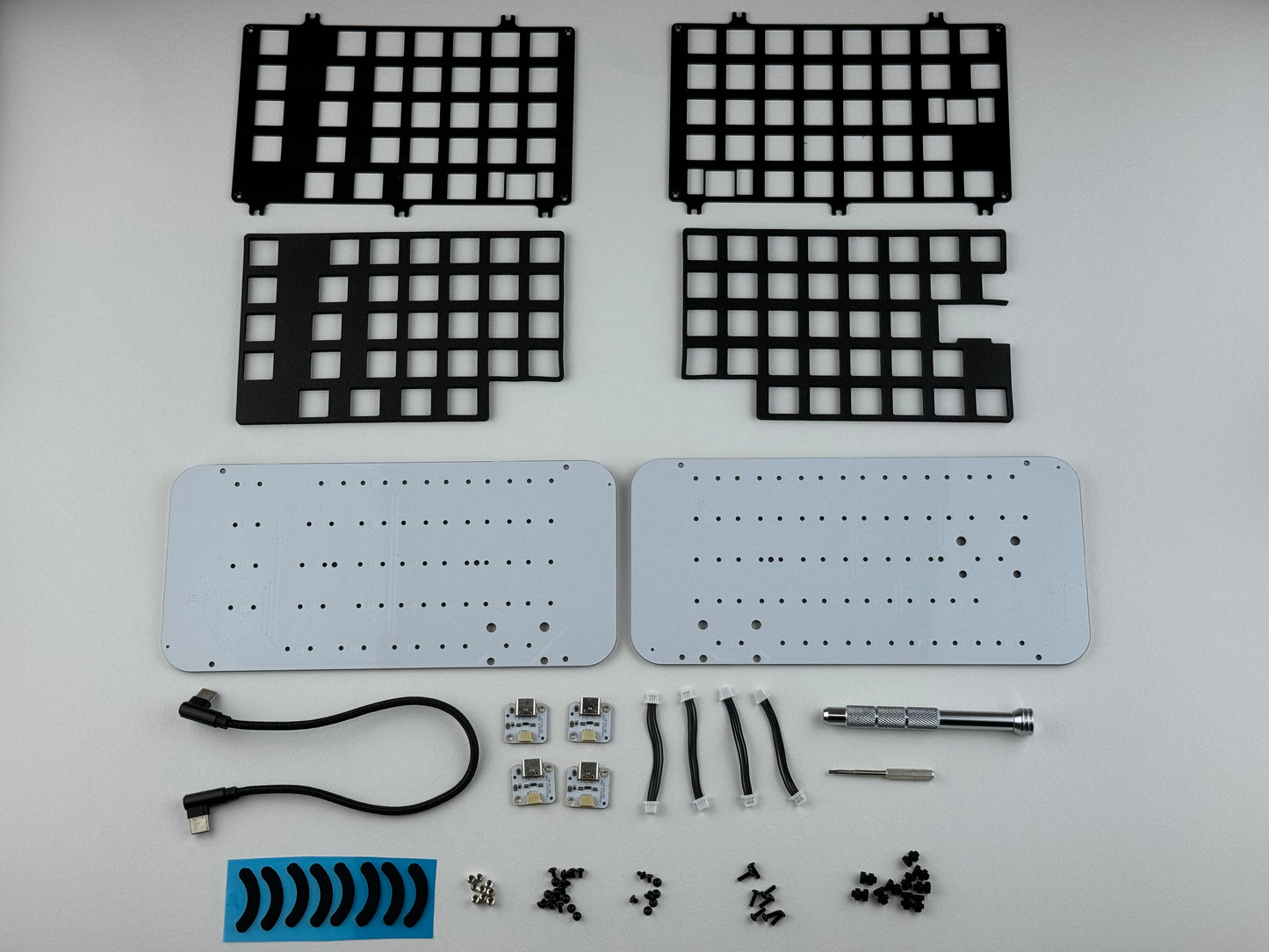

In the box

  • 2x keyboard half (left, right)
  • 2x hall effect PCB (left, right)
  • 4x daughterboard & JST cable
  • 1x USB-C to USB-C cable
  • 2x plate foam (left, right)
  • 10x silicone gasket
  • 8x silicone feet
  • accessories (screwdriver, screws, standoffs, extras)

Required but NOT included

  • USB-C to USB-A cable
  • keycaps (standard keycaps in most base kits, except for the 2U spacebars and 1U backspace)
  • switches
  • 3x 2U screw-in stabilisers for 1.6mm thick PCB (long pole not required for magnetic jade switches. There won't be issues unless you forcefully press and hold down one side of the enter/spacebar key)

Quality expectations

SURFACE

  • No visible scratches on the exterior surface of the keyboard top cover.
  • Hook-marks and faint machining lines may be present in the interior or bottom surface of the keyboard, where it is not visible when in use.

COLOUR

  • Even colouring on surfaces of the keyboard that are visible when in use.
  • Very faint uneven colours may be present on the interior or bottom surface of keyboard.
  • Small marks near screw holes might be present.

Sound test (recorded with FIFINE K669B)

Gateron Magnetic Jade Pro

Gateron Magnetic Jade Max
