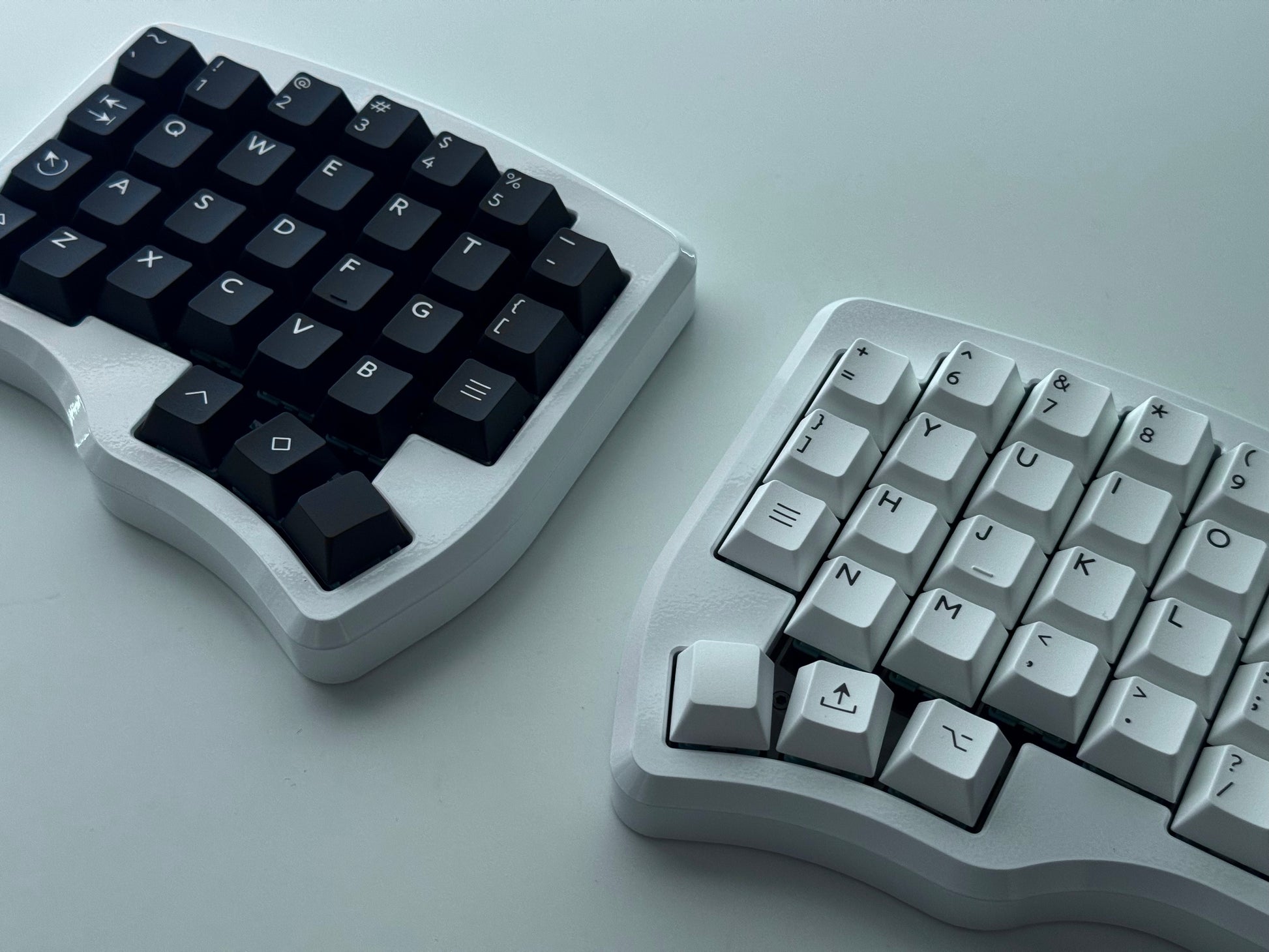

• White Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys black and white keycaps
  • Sunder C60 HE parts
  • Top view of grey Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys black keycaps
  • Top view of grey Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys white keycaps
  • Back view of black Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys white keycaps
  • Top view of white Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys black keycaps

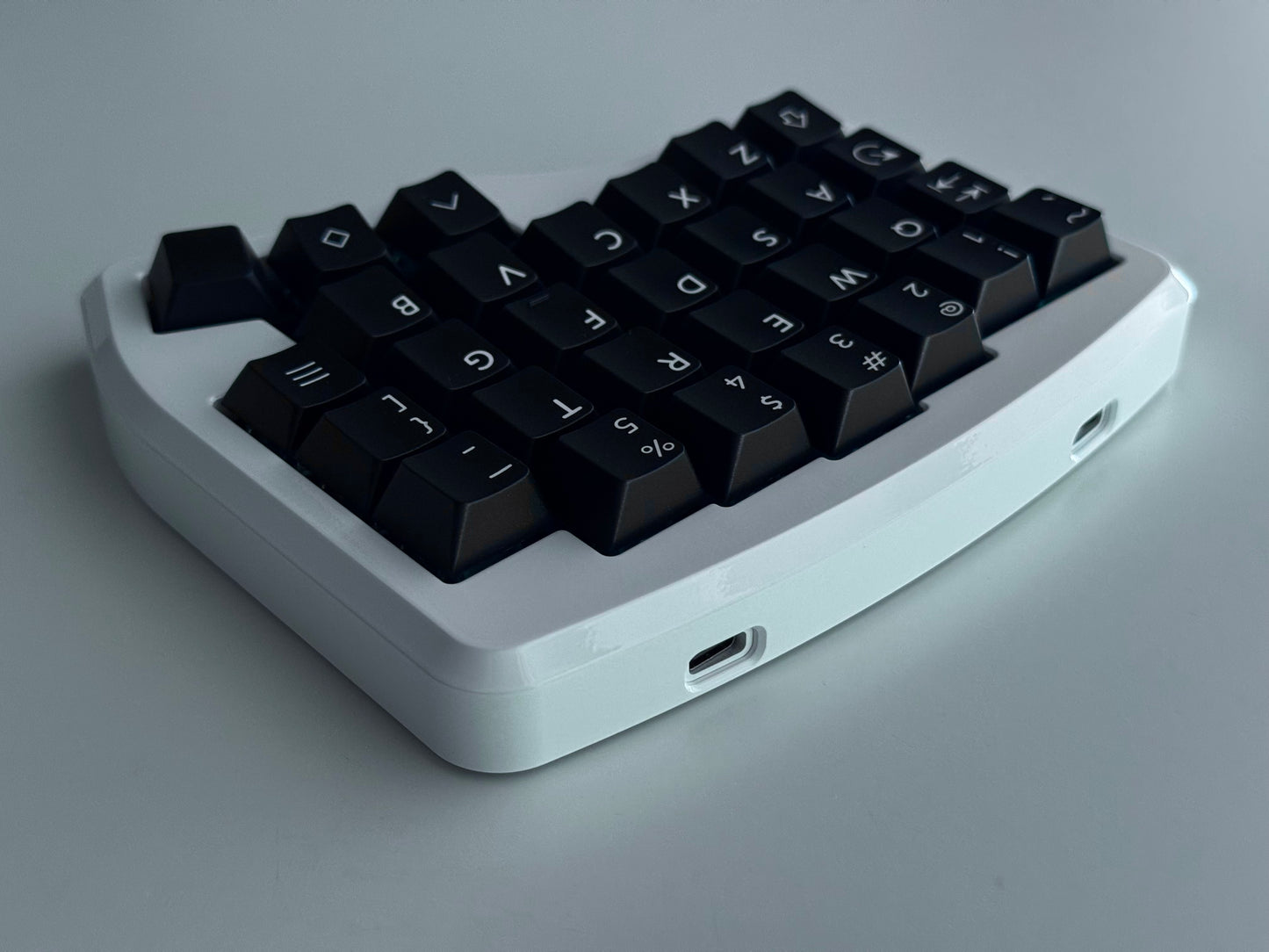

  • Back view of white Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys black keycaps
1 7

Sunder C60 HE

Sunder C60 HE

$295.00 SGD
$295.00 SGD
Sale Sold out
Shipping calculated at checkout.
Color

Click here for assembly guide.

View full details

Sunder C60 HE (Restock - PCB v2)

Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys

New in this batch: PCB v2 (STM32F446 MCU) and newly added case foams

Hall Effect Details

Compatible switches:
- Gateron Magnetic Jade (3.5mm, any variant except low profile)
- Gateron Magnetic Spark (3.2mm)
- GEON Raw HE (3.4mm)
- Owlab Ti HE (3.4mm)
- TTC KOM (3.4/3.5mm, any variant except low profile)
- Haimu Hush/Dove HE (3.8mm)
- Raeds HE (3.9mm)
Other untested switches with similar magnetic flux should also work.

Firmware: QMK Vial (modified for Hall effect)
GUI: Vial (modified for Hall effect)

Per key settings
- actuation point
- rapid trigger, continuous rapid trigger
Global settings (same for all keys)
- switch total travel distance
- sensitivity

Scan rate: 6.5 kHz (STM32F446 - PCB v2), 2.8 kHz (RP2040 - PCB v1)
Polling rate: 1 kHz

Keyboard Details

Typing angle: 0°
Front height: 18.5mm (19.5mm with rubber feet)
PCB-gasket mount

Keyboard material: Aluminium 6061
Plate material: POM
Gasket material: silicone rubber
Colours: Anodised black, anodised grey, e-white (glossy)

In the box

2x (left and right)
- top enclosure
- bottom enclosure
- plate
- plate foam
- case foam
- HE PCB v2 (STM32F446, flashed with latest firmware before 16 Oct 2025)
- daughterboard and JST cable

1x USB-C to USB-C cable 30cm
8x silicone rubber gasket
8x silicone rubber feet (+1 extra)

1x H1.5 screwdriver
12x 3.5mm standoffs
8x M2x5
12x M2x3 (countersunk)
16x M2x3

1x carrying case

C60 sound test (recorded with FIFINE K669B)

Gateron Magnetic Jade Pro

Gateron Magnetic Jade Pro + case foam

Disclaimer

Keycaps and switches are not included.
USB-C cable that connects the keyboard to your computer is not included.

Quality expectations

Visible Surfaces (top-facing areas)
Small imperfections may be present within the following limits:
- Fine surface lines or scratches up to 3 mm
- Minor blemishes or dots up to 2 mm in diameter
- Dents up to 1 mm in diameter
- Anodising or e-coating pinholes / specks / particles / voids up to 1 mm in diameter

Non-Visible Surfaces (sides, undersides, interior)
Surfaces not visible during normal use after assembly may include:
- Machining/tooling marks
- Surface texture or coating variation
- Other minor defects

Anodising Notes:
- Slight colour variation is natural in the anodising process and not considered a defect.
- Minor visual variation may occur depending on viewing angle or lighting, which is inherent to anodised finishes

E-White Coating Notes:
- In some units, tight tolerances between the top and bottom enclosure may require additional force to separate. Contact points may experience slight coating wear.
