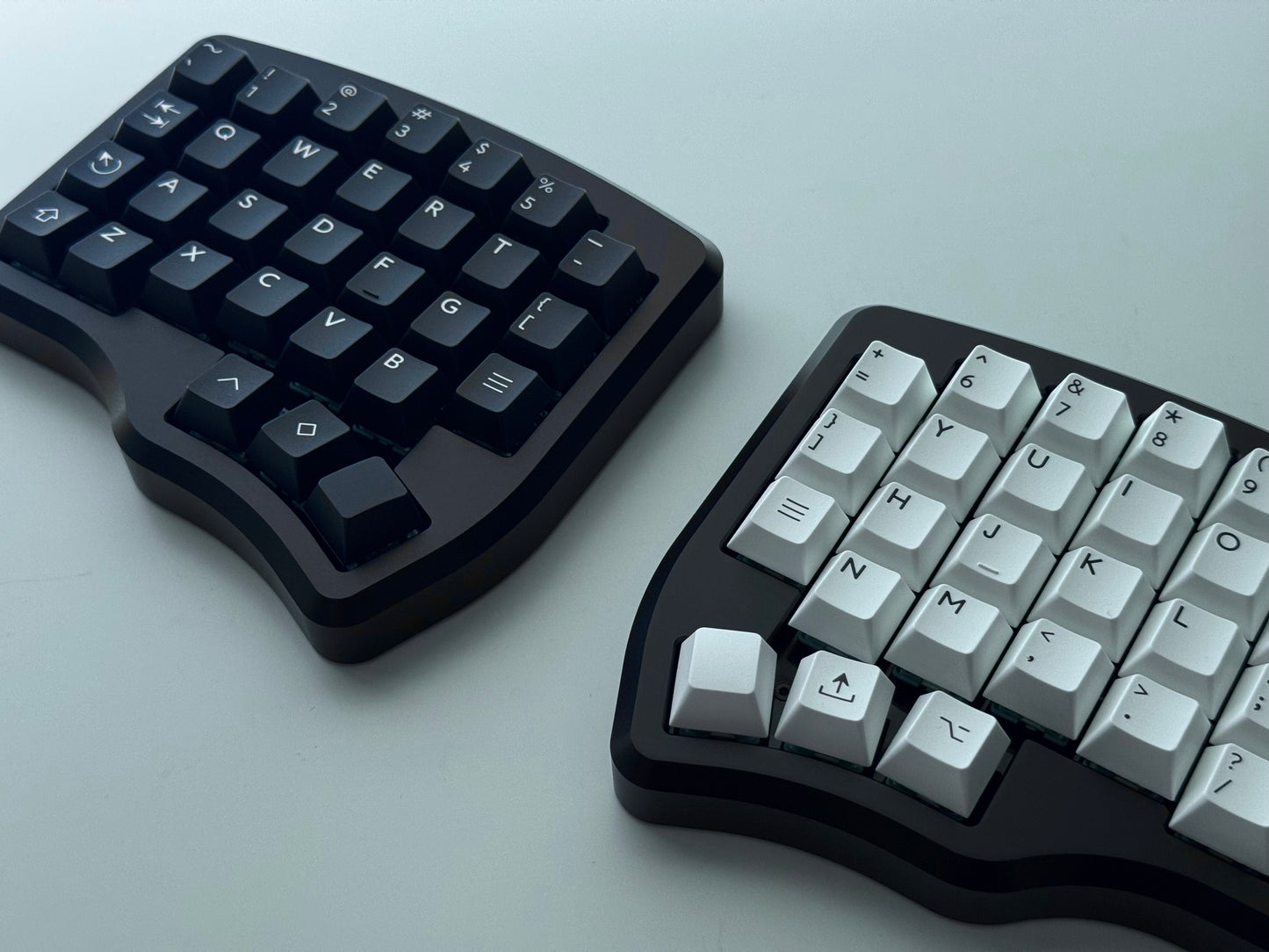

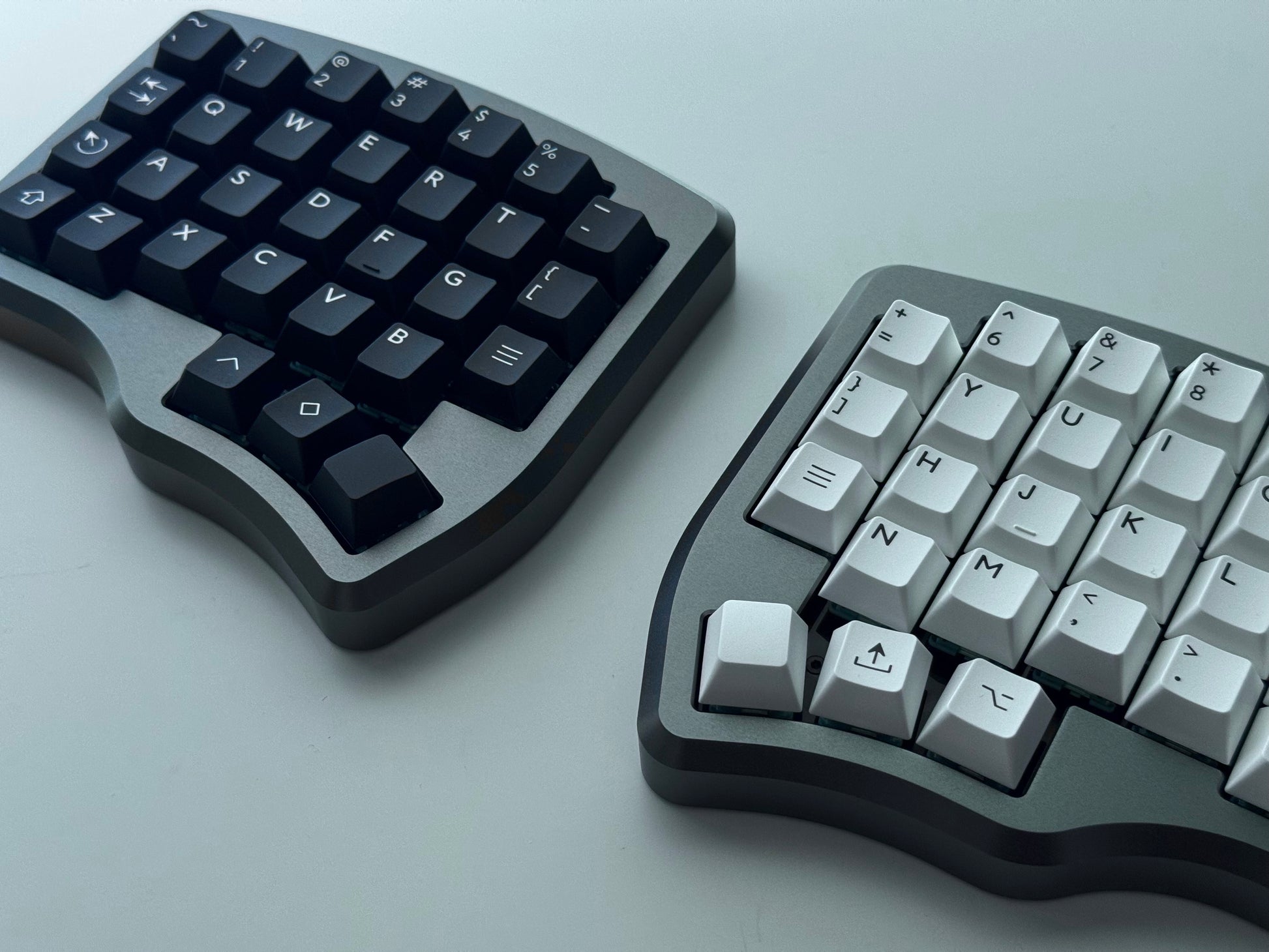

• Grey Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys black and white keycaps

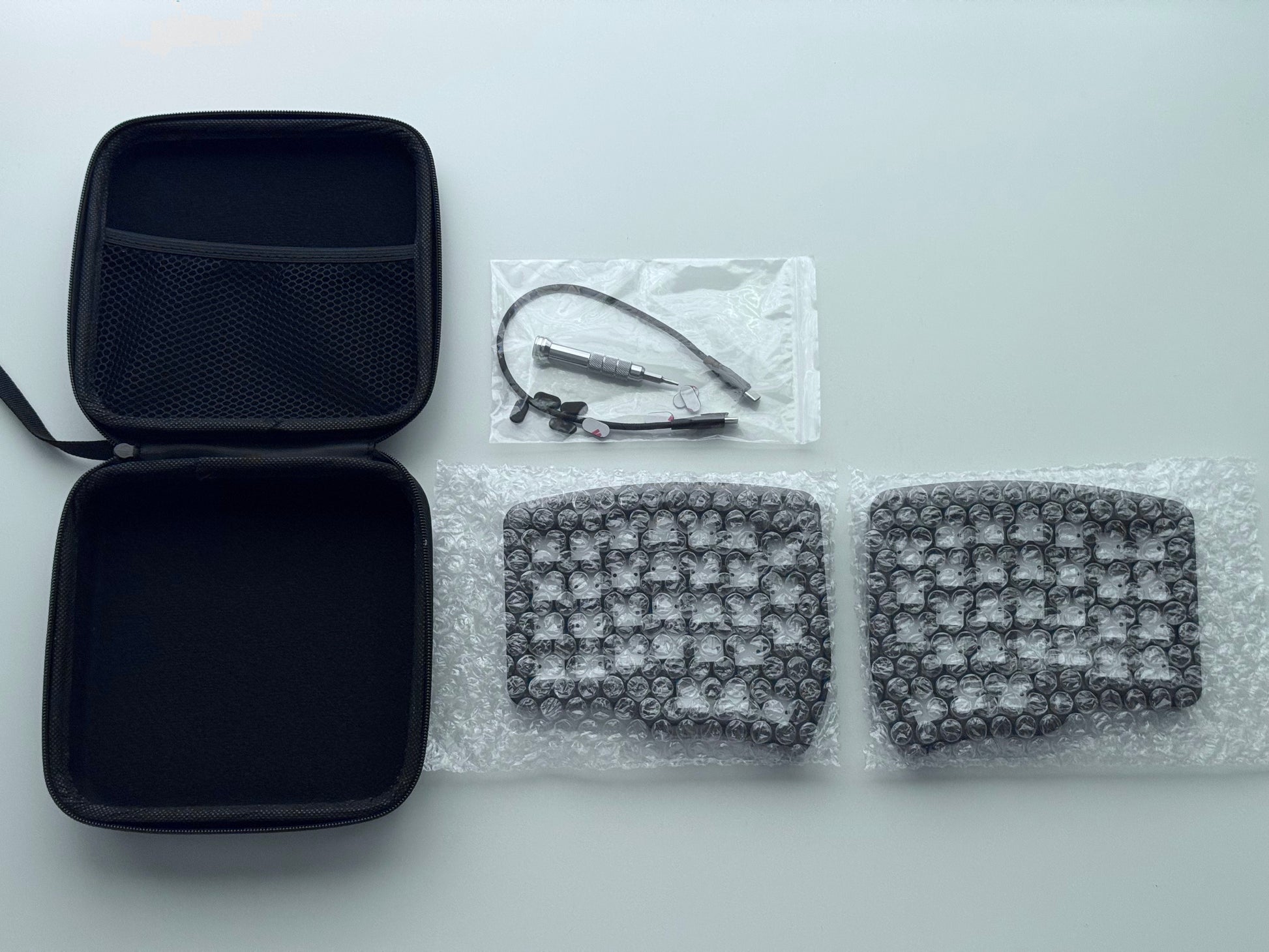

  • Sunder C60 HE parts

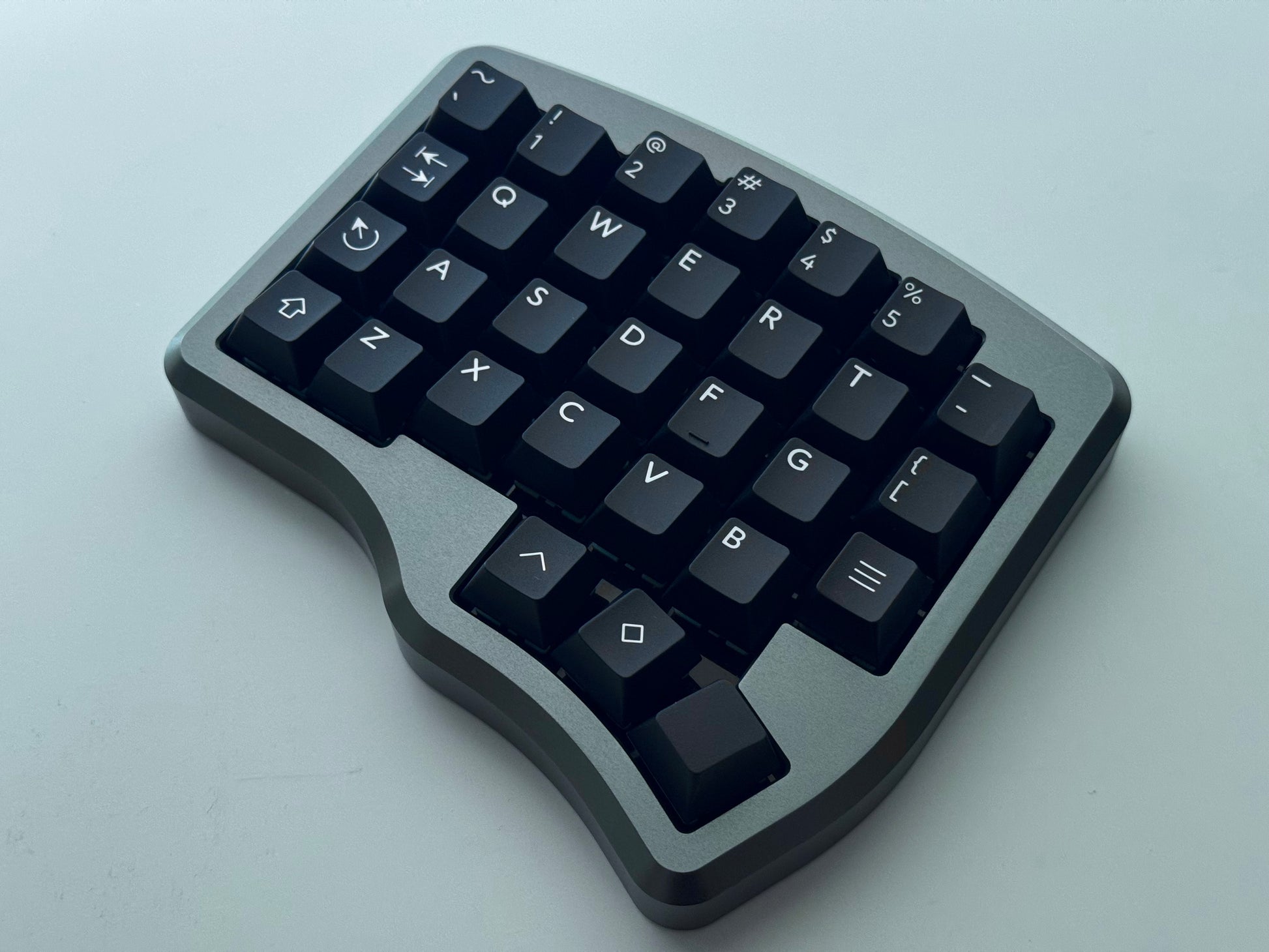

  • Top view of grey Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys black keycaps

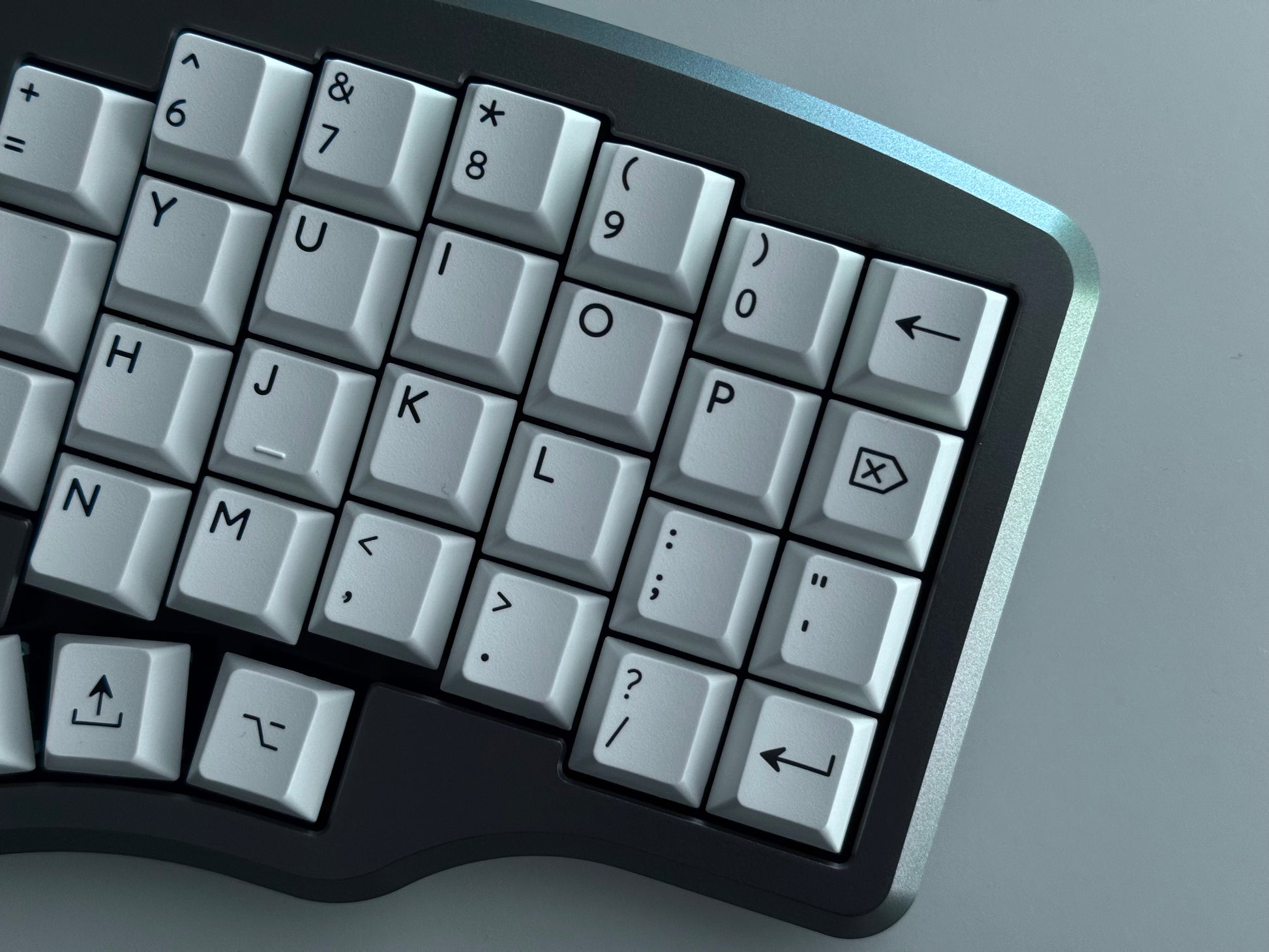

  • Top view of grey Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys white keycaps

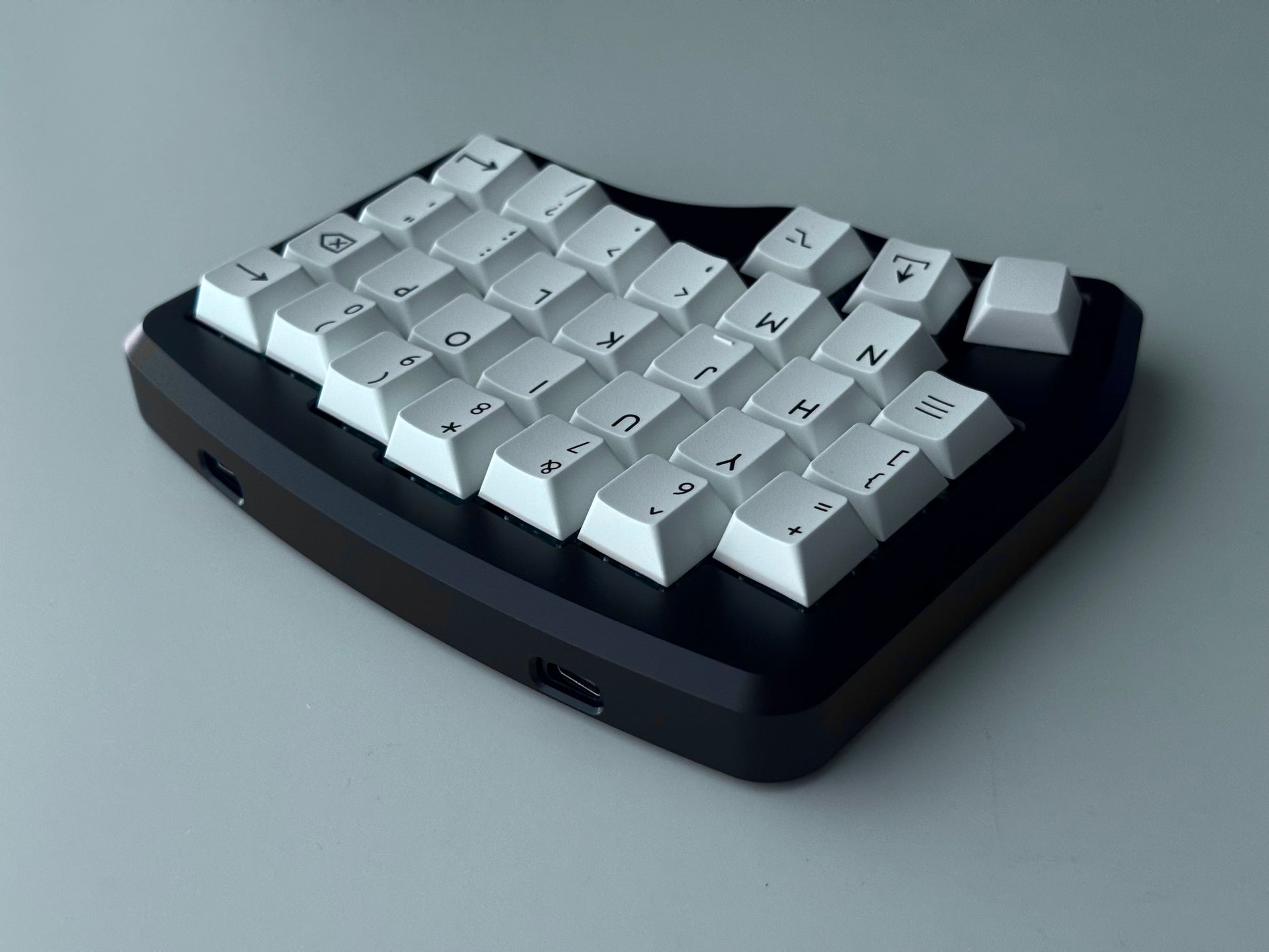

  • Back view of black Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys white keycaps

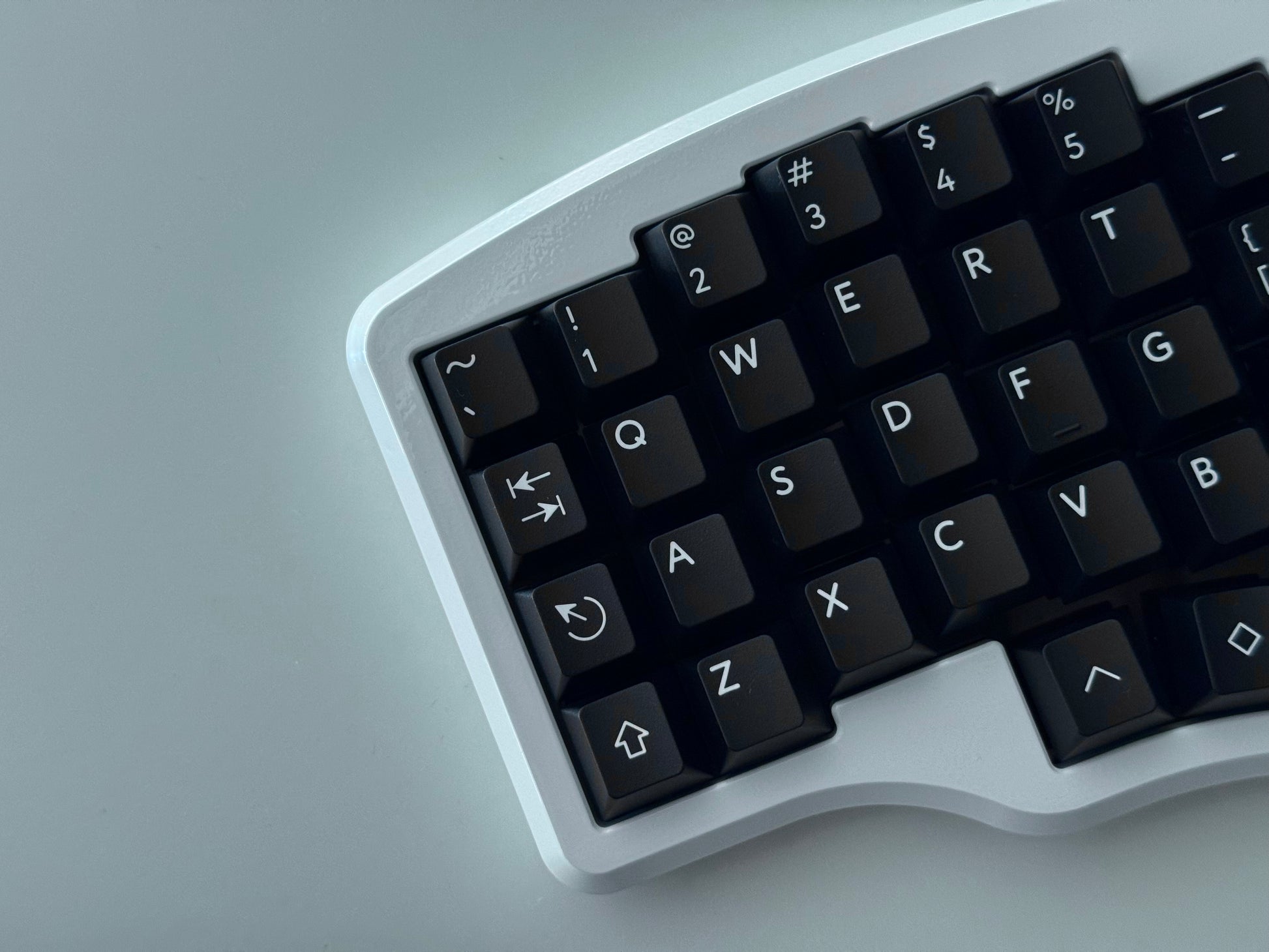

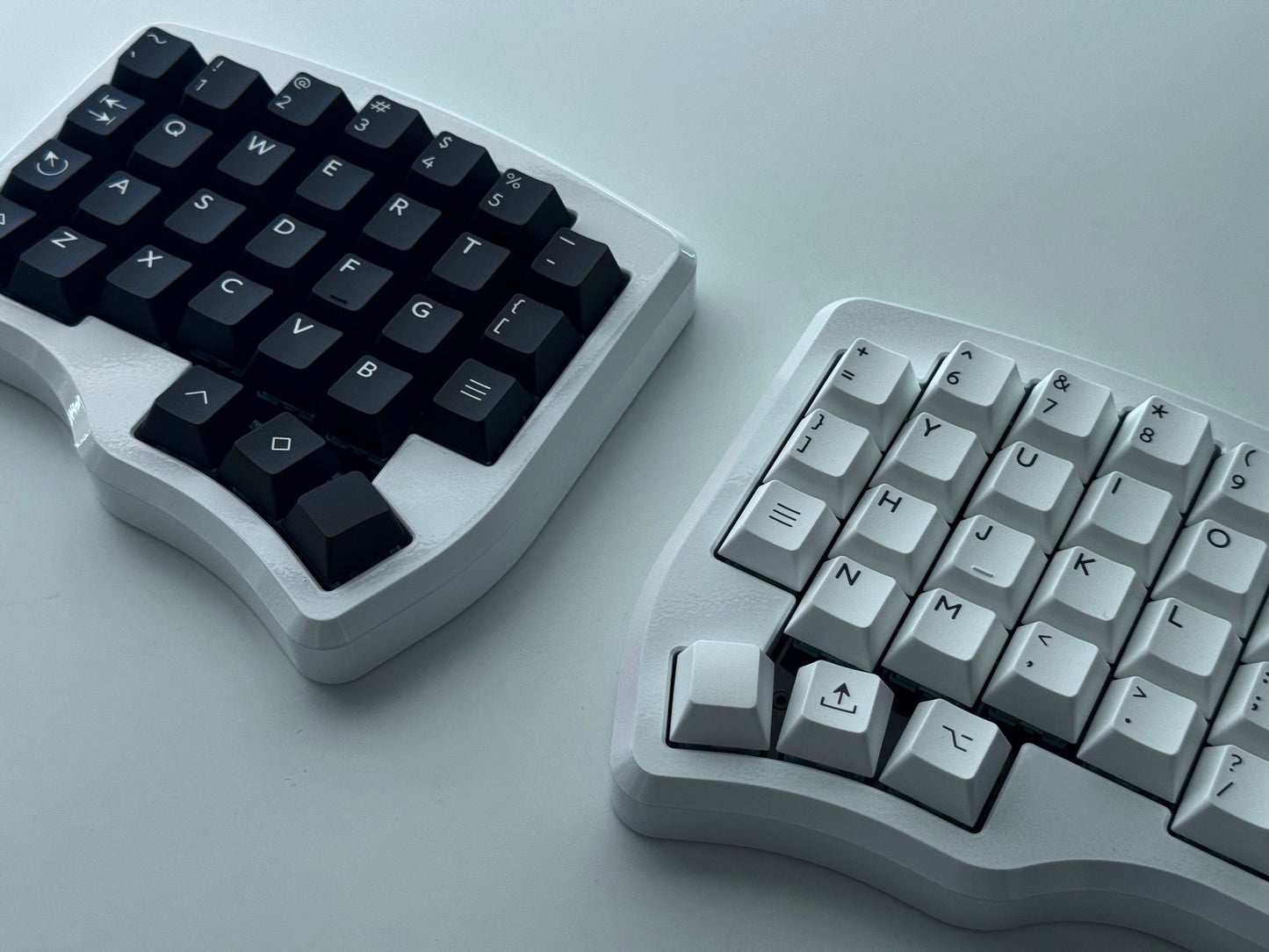

  • Top view of white Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys black keycaps

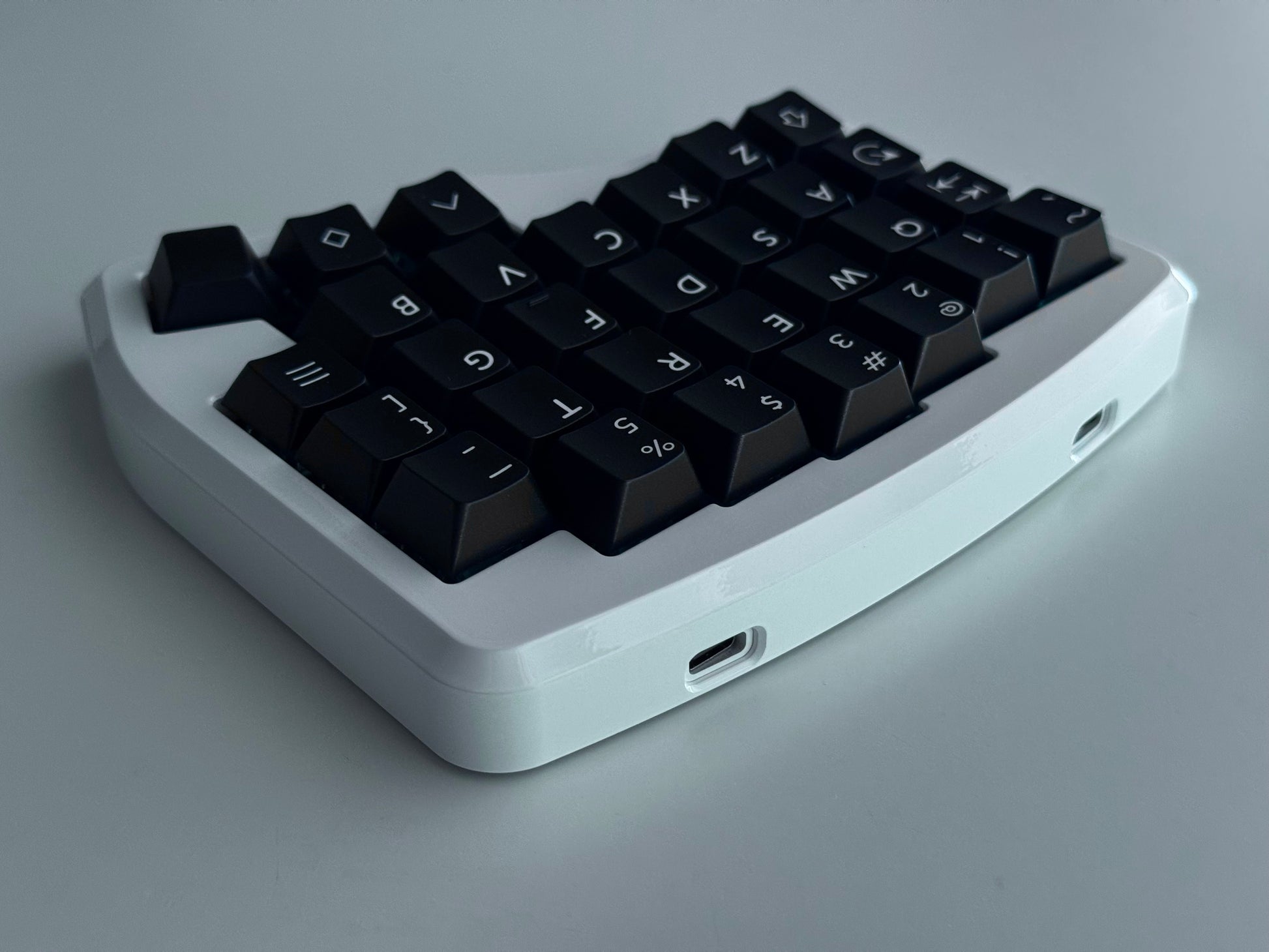

  • Back view of white Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys black keycaps
1 7

Sunder C60 HE

Sunder C60 HE

$290.00 SGD
$290.00 SGD
Sale Sold out
Shipping calculated at checkout.
Color

Click here for assembly guide.

View full details

Sunder C60 HE

Hall effect split keyboard with 4x6 column staggered keys and 3 thumb keys

Hall Effect Details

Compatible switches:
- Gateron Magnetic Jade (3.5mm, any variant except low profile)
- Gateron Magnetic Spark (3.2mm)
- GEON Raw HE (3.4mm)
- Owlab Ti HE (3.4mm)
- TTC KOM (3.4/3.5mm, any variant except low profile)
Other untested switches with similar magnetic flux should also work.

Firmware: QMK Vial (modified for Hall effect)
GUI: Vial (modified for Hall effect) [Demo]

Per key settings
- actuation point
- rapid trigger, continuous rapid trigger
Same for all keys in keyboard half
- switch total travel distance
- sensitivity

Scan rate: >2 kHz
Polling rate: 1 kHz

Keyboard Details

Typing angle: 0°
Front height: 18.5mm (19.5mm with rubber feet)
PCB-gasket mount

Keyboard material: Aluminium 6061
Plate material: POM
Gasket material: silicone rubber
Colours: Anodised black, anodised grey, e-white (glossy)

In the box

2x (left and right)
- top enclosure
- bottom enclosure
- plate
- plate foam
- HE PCB
- daughterboard and JST cable

1x USB-C to USB-C cable 30cm
8x silicone rubber gasket
8x silicone rubber feet (+1 extra)

1x screwdriver (H1.5 and handle)
8x 3.5mm standoffs
8x M2x5
8x M2x3 (countersunk)
12x M2x3

1x carrying case

C60 sound test (recorded with FIFINE K669B)

Gateron Magnetic Jade Pro

Disclaimer

Keycaps and switches are not included.
USB-C cable that connects the keyboard to your computer is not included.

Quality expectations

Anodised Finish:
- No scratches or marks on the top exterior surface of the keyboard.
- Minor scratches, hook marks, or machining lines may be present on the sides, interior, or bottom surface where not visible during normal use.
- Slight colour variation may be present.

E-White Finish:
- Due to the nature of e-white coating, small particles, specks, slight speckling, pinholes, or other minor surface imperfections may be present. Units are selected so that such imperfections are less noticeable on the top exterior surface.
- Side, interior, bottom, or non-visible surfaces may have more noticeable imperfections, which do not affect appearance during use.
- In some units, tight tolerances between the top and bottom enclosure may require additional force to separate. Contact points may experience slight coating wear over time.
